Project Description

(Last Updated On: January 2, 2018)

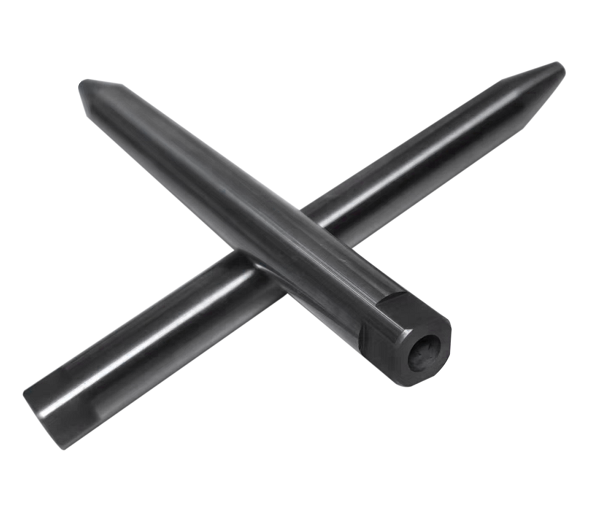

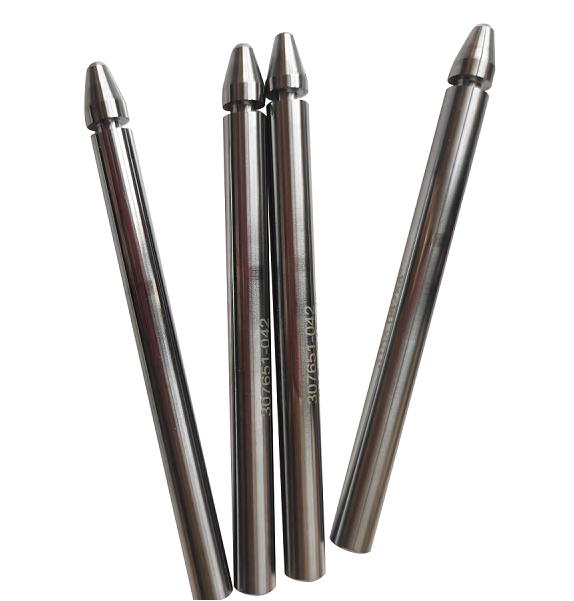

Waterjet Abrasive Nozzle Specification(Customize is available)

L *⌀(D) *⌀(d) (mm) L *⌀(D) *⌀(d)  (inch)
76.2 x 6.35 x 0.76  3 x 0.25 x 0.03
76.2 x 6.35 x 1.02 3 x 0.25 x 0.04
76.2 x 6.69 x 0.76 3 x 0.263 x 0.03
76.2 x 6.69 x 1.02 3 x 0.263 x 0.04
76.2 x7.14 x 0.76 3x 0.281 x 0.03
76.2 x7.14 x 1.02 3×0.281×0.04
76.2 x 7.14 x 1.27 3×0.281×0.05
76.2 x 9.43 x 0.5 3×0.371×0.02
76.2 x 9.43 x 0.76 3×0.371×0.03
76.2 x9.43 x1.02 3×0.371×0.04
101.6 x7.14 x0.76 4×0.281×0.03
101.6 x7.14 x 1.02 4×0.281×0.04
101.6 x7.97 x0.76 4×0.314×0.03
101.6 x7.97 x1.07 4×0.314×0.042
Aroma waterjet nozzle based on the nanotechnology of tungsten carbide , strengthened the resistant of nozzle,longer the life of working times.
The content of Cobalt is within 0.6%, density is around 15.5g/cm3, Anti-stress between 2000Mpa-2400Mpa.
Super oxygen resistance, lower thermal expansion, high hardness and density, surpassing other similar products greatly.
hardness 97%
density 16CM3
durable 100hrs

Our high pressure waterjet nozzle are widely used in cutting metal, glass, granite, marble,stone so as to other construction materials, composite materials, bullet-proof materials and other special material required shape of a cut forming, water cutting soft material, low melting point,flammable and explosive materials like bombs, oil tanks etc.
